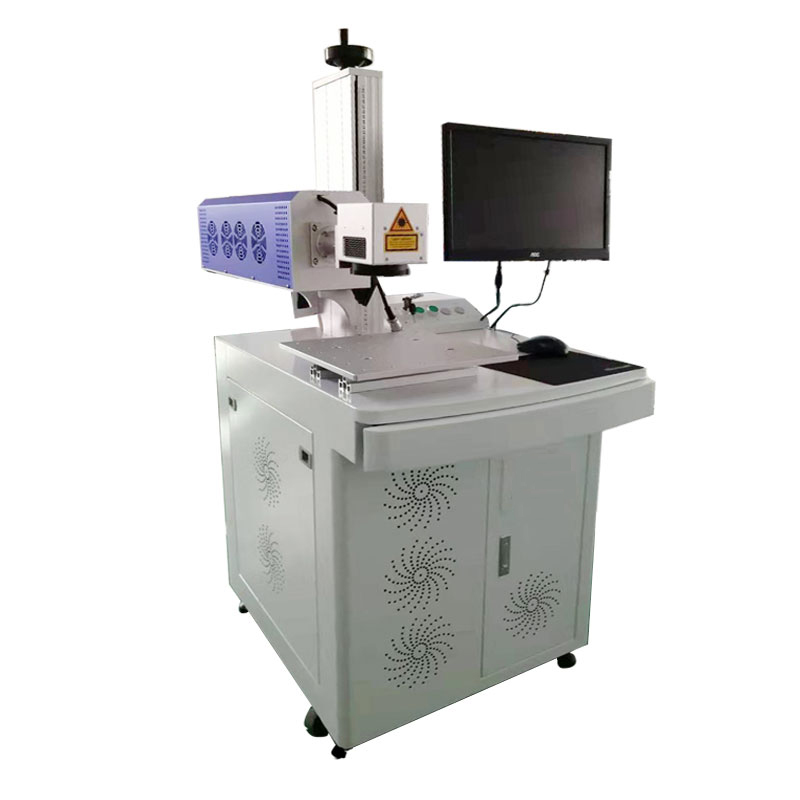

CO2 Laser Marker LM30C

CO2 laser marking machine is a laser galvanometer marking machine that uses CO2 gas as the working medium. The CO2 laser uses C02 gas as the medium, fills C02 and other auxiliary gases into the discharge tube and applies high voltage on the electrode, a glow discharge is generated in the discharge tube, and the gas releases a laser with a wavelength of 10640nm

Send Email:

mike@nice-laser.com

Products

Products DETAILS

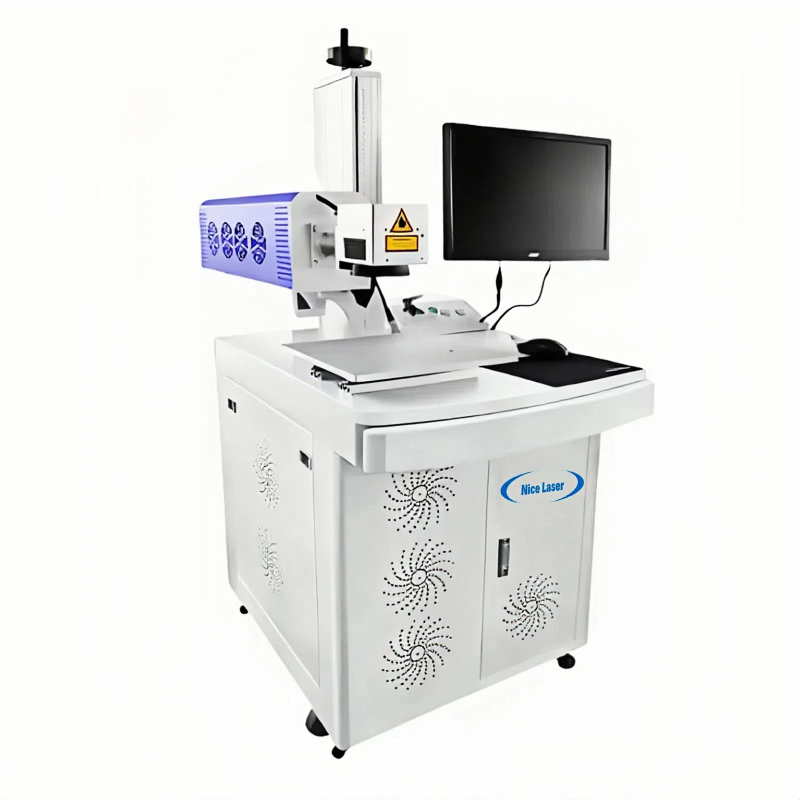

CO2 Laser Marker LM30C

Model	LM30 C
Wavelength	10640nm
Beam quality	<1.4 m2
Laser power	30/50W
Cooling method	Air
Focus distance	170mm
Scanning speed	0-7000mm/s
Graphic format supported	DXF/PLT
Voltage	110/220V
Frequency	50/60Hz
Working environment	Temperature: 0-45 degrees, humidity: 5%-75%, no water or dust
Power	600W
Safety protection	IP54
Laser source safety level	4
