PCB Vision Laser Marker

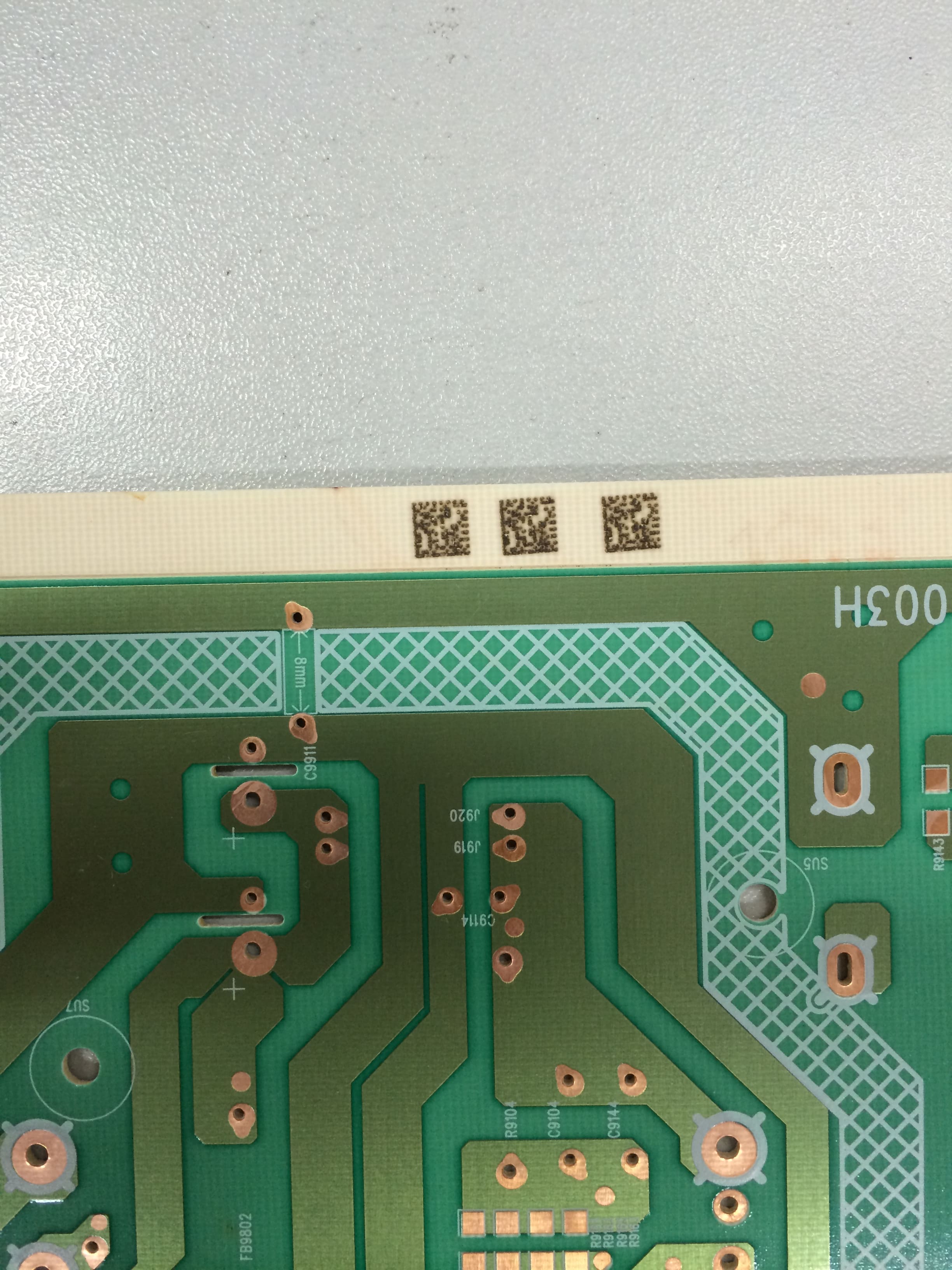

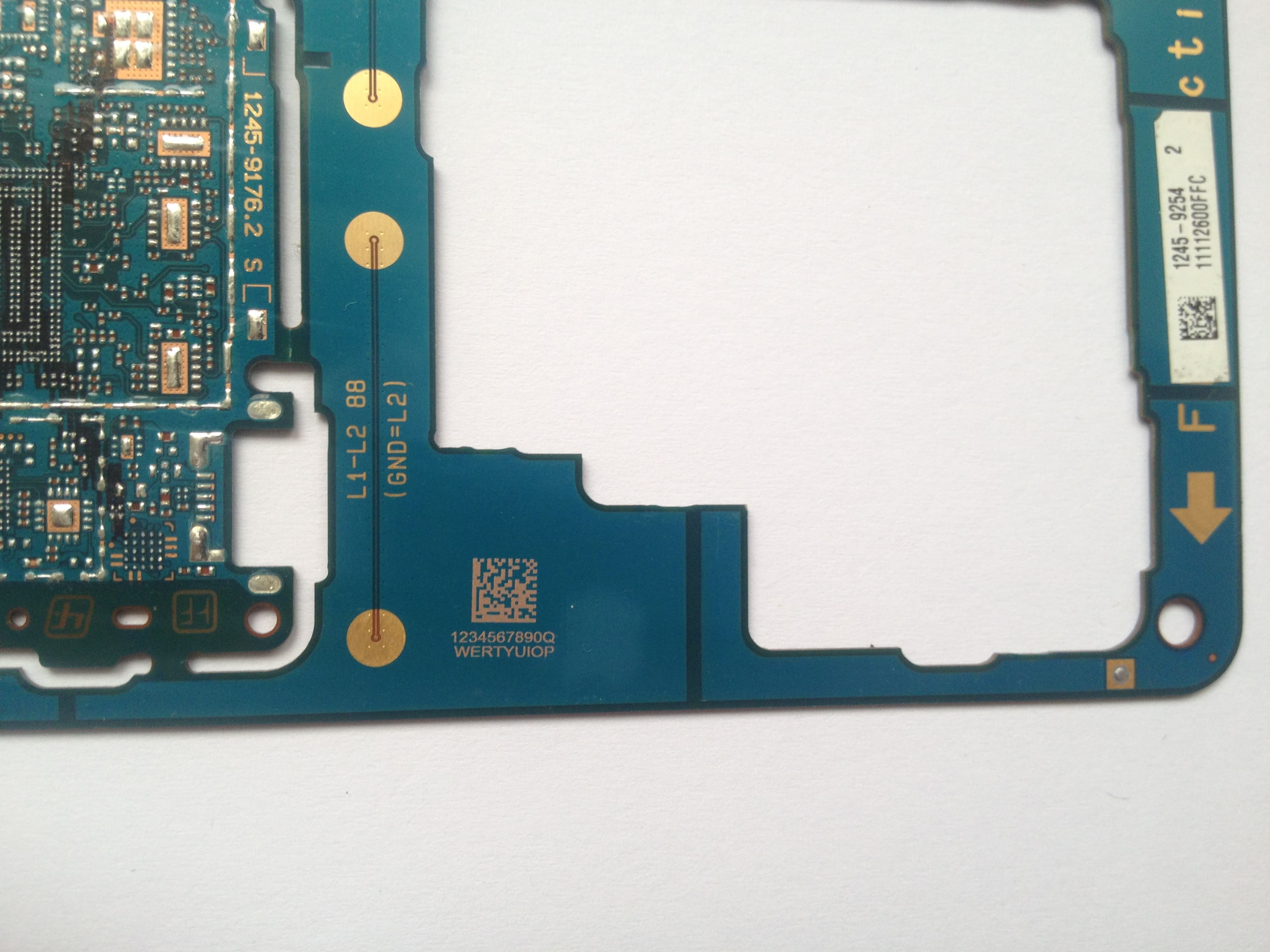

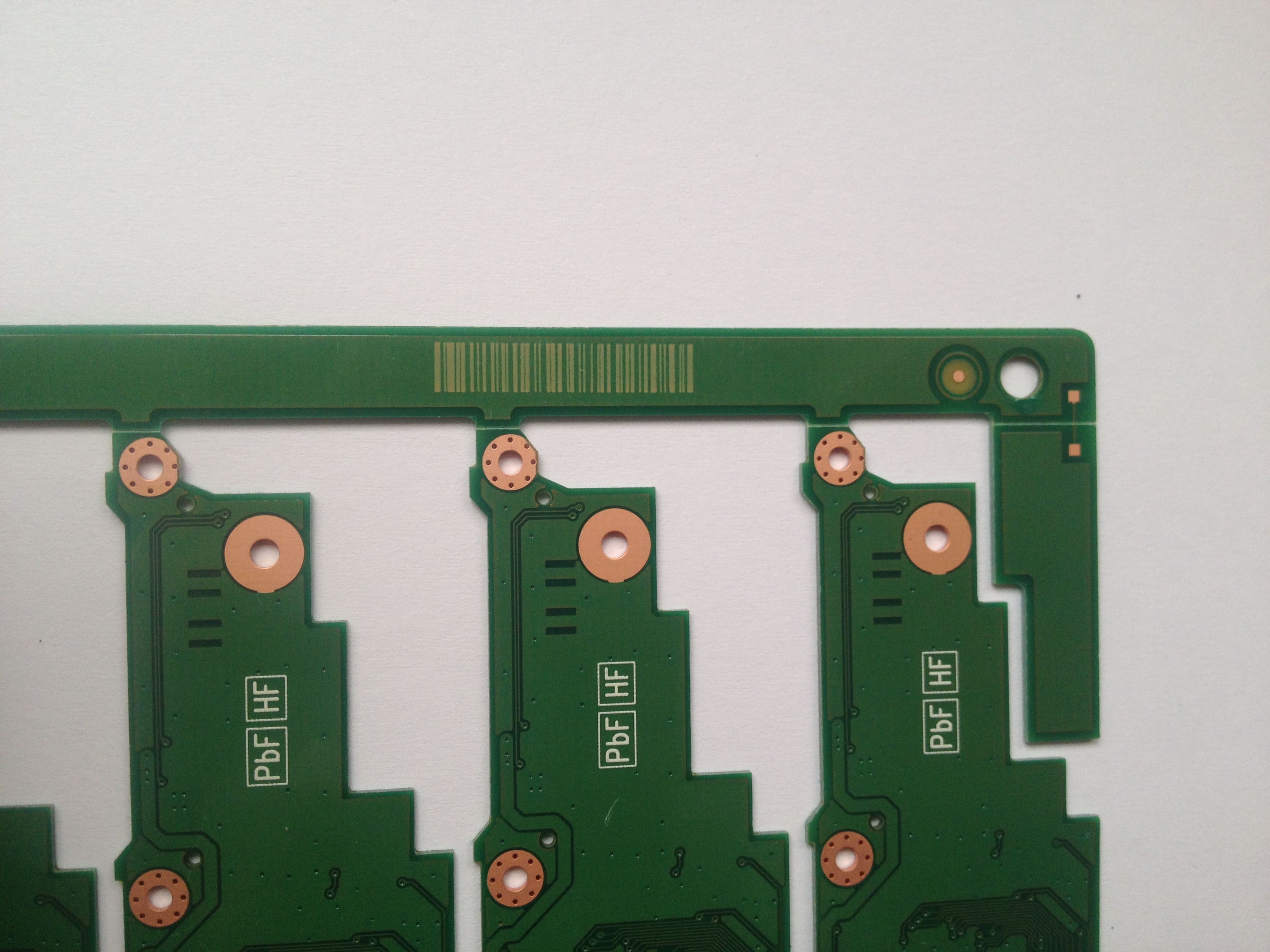

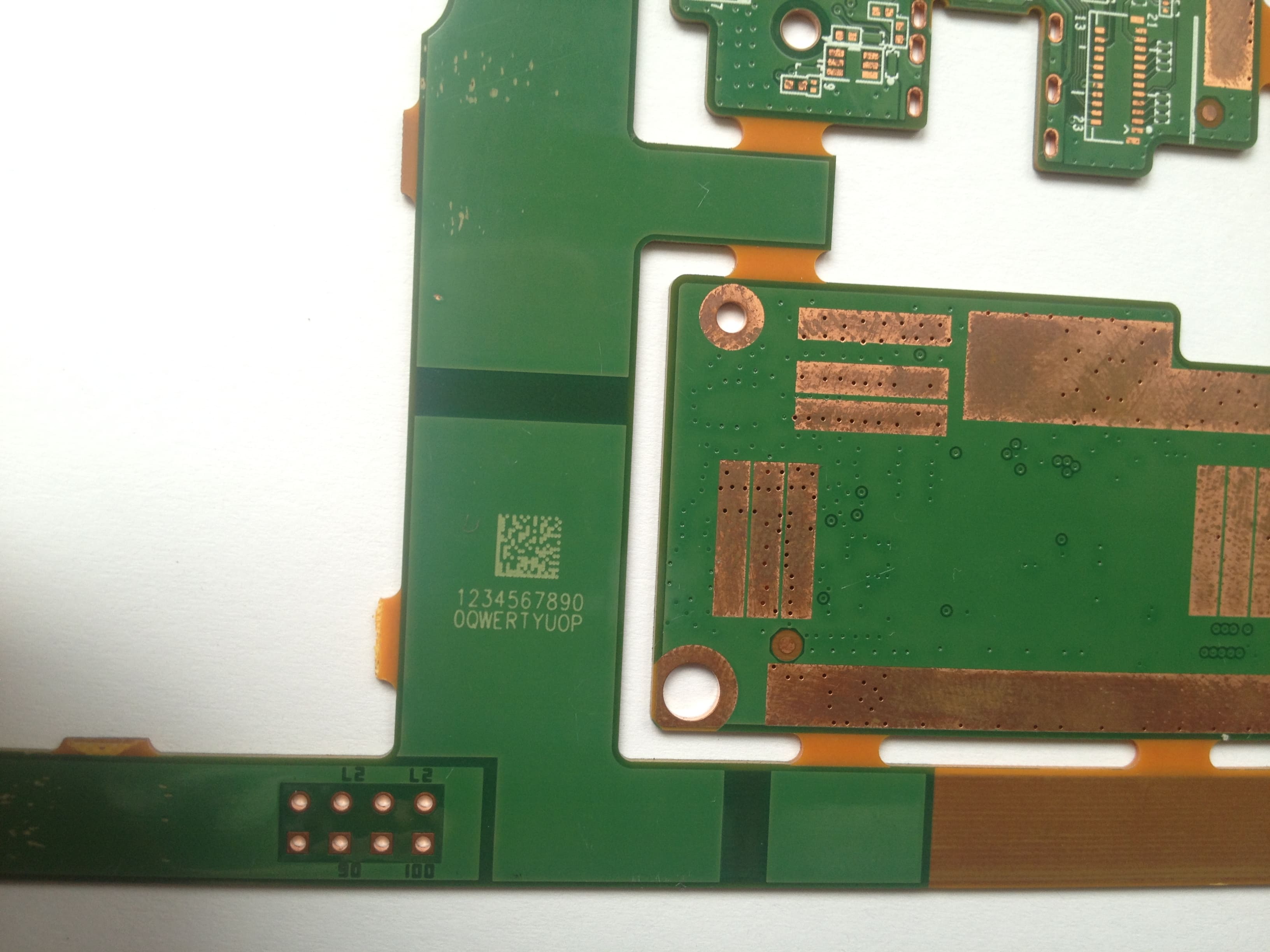

The automated laser coder is applied for high‑precision marking on PCBA circuit boards, plastic parts and electronic components. It is widely used in electronics manufacturing for printing serial numbers, QR codes and logos with fine marking effect.
Products
Products DETAILS

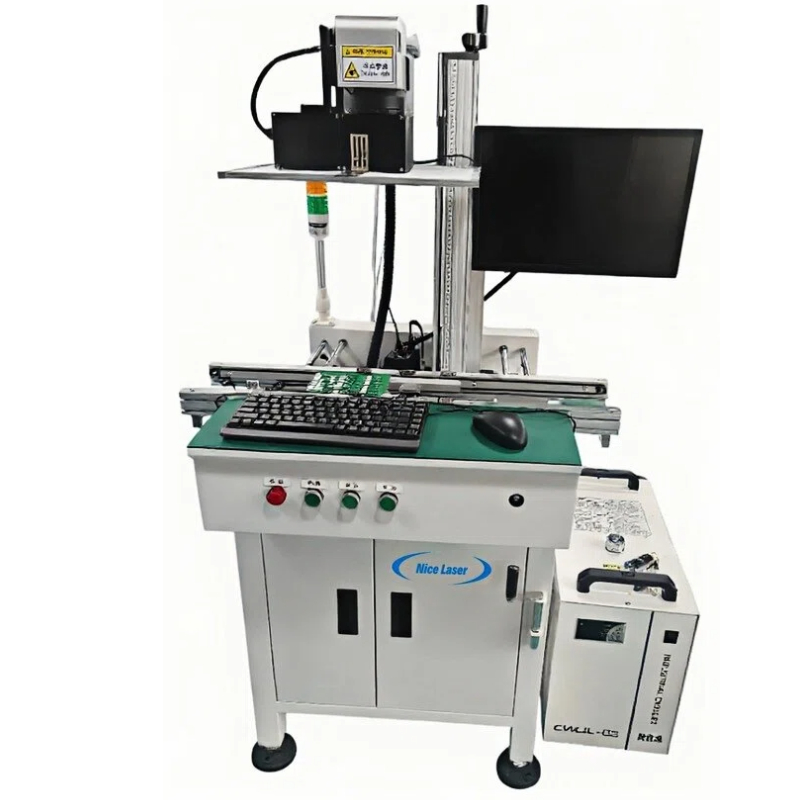

PCB Vision Laser Marker
TECHNICAL SPECIFICATIONS
|
No. |
Specification Item |
Technical Parameters |
|
1 |
Equipment Name |
PCB Vision Laser Marking Machine |
|
2 |
Model |
LM 10U-300 |
|
3 |
Flipping / Double-sided Marking |
None |
|
4 |
Laser Type |
Ultraviolet (UV) |
|
5 |
Laser Wavelength |
355 nm |
|
6 |
Laser Power |
10W |
|
7 |
Marking Field / Area |
300 mm × 300 mm |
|
8 |
Marking Speed |
Up to 7000 mm/s |
|
9 |
Marking Position Accuracy |
±0.05 mm |
|
10 |
Repeat Position Accuracy |
±0.05 mm |
|
11 |
Applicable PCB Dimensions |
330 mm × 330 mm |
|
12 |
Applicable PCB Thickness |
0.5 mm – 3 mm (Customizable) |
|
13 |
PCB Top Clearance Height |
< 25 mm (Customizable) |
|
14 |
PCB Bottom Clearance Height |
< 25 mm (Customizable) |
|
15 |
Conveyor Conveying Height |
900 ± 20 mm (Customizable) |
|
16 |
Conveyor Width Adjustment |
Manual adjustment according to board size |
|
17 |
Conveyor Speed |
30 – 600 mm/min |
|
18 |
Conveyor Direction |
Left to Right (L-R) / Right to Left (R-L) |
|
19 |
Laser Aiming / Pointer |
Vision Guided Guidance |
|
20 |
Applicable Substrates |
Rigid PCB, Solder Mask / White Blocks |
|
21 |
1D Barcode Symbologies |
Code 39, Code 25, Code 93, Code 128, EAN-13, EAN-8, ISBN, etc. |
|
22 |
2D Barcode Symbologies |
Data Matrix, QR Code, Micro QR Code, PDF417, Code 49, Code 16K, etc. |
|
23 |
Supported 2D Code Size |
3 mm × 3 mm to 20 mm × 20 mm |
|
24 |
Supported Fonts / Character Types |
TrueType, Single Line (JSF), SHX, Dot Matrix (DMF) |
|
25 |
Minimum Character Height |
0.5 mm |
|
26 |
Supported File Formats |
DXF, PLT, Excel, TXT, and other common formats |
|
27 |
Automatic Positioning |
CCD Vision Positioning |
|
28 |
Automatic Code Reading |
None |
|
29 |
Error-Proofing / Poka-Yoke Identification |
Supported |
|
30 |
Bad / Cross-marked Board Detection |
Supported |
|
31 |
Template Capture Marking |
Captures silkscreen characters, white blocks, or outer frames directly for precise alignment |
|
32 |
Conveyor Interface |
SMEMA Standard Interface |
|
33 |
Network Interface |
Ethernet |
|
34 |
Power Requirement |
220V / 50Hz, Total Power ≈ 3000W |
|
35 |
Noise Level |
Max. 65 dB |
|
36 |
Total Machine Weight |
100 kg |
|
37 |
Dimensions (W × D × H) |
800 mm × 900 mm × 1597 mm |
|
38 |
Operating Environment |
Temperature: 20–28 °C, Humidity: 30%–60% |
