Automated Vision-Positioning Laser Marker
The automated vision-positioning laser marking system enables rapid positioning and simultaneous marking of multiple products at any position, angle, and quantity. The software automatically recognizes and marks the products. This saves labor, improves production efficiency, and is easily integrated into automated production lines compatible with multiple products, resulting in significant cost savings for factories.
Products
Products DETAILS

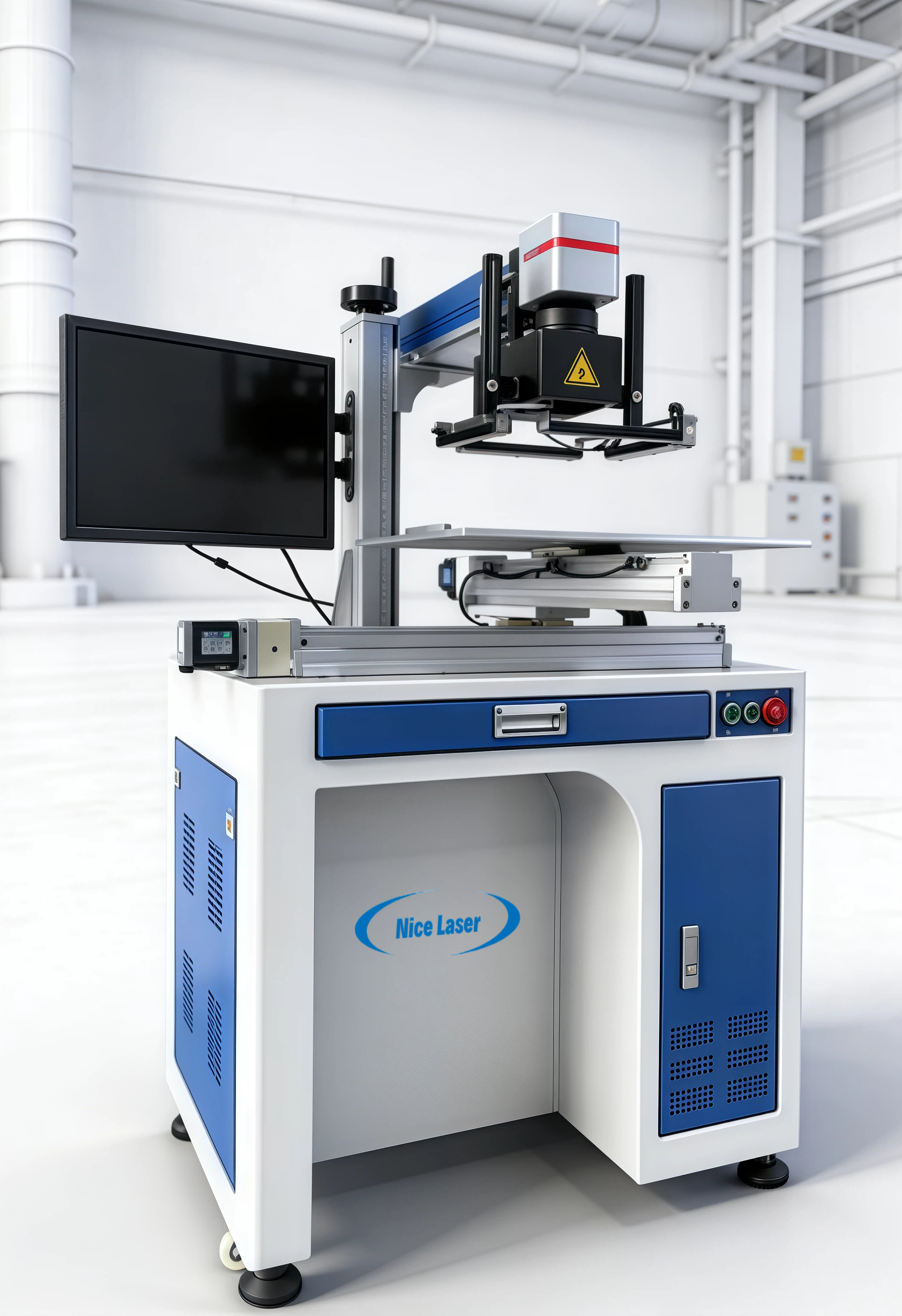

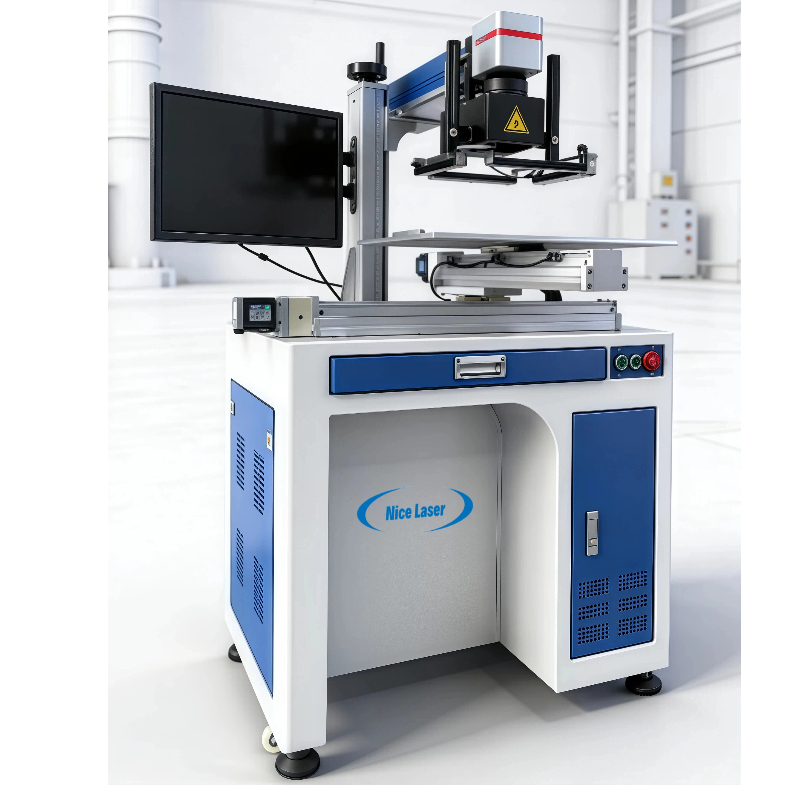

Automated Vision-Positioning Laser Marker
Features:
1. Easy to integrate into various production lines for automated positioning and marking;
2. Wide visual range, supporting mainstream lasers such as UV, fiber, and CO2, suitable for most products.
3. The software automatically identifies and marks products at any position and quantity.
4. Unique software algorithm ensures high positioning accuracy and fast speed.
5. User-friendly interface and one-click calibration function make operation simple.
6. The conveyor belt can be customized according to product size and characteristics.
Technical Spec:
|
Specification |
LM 20F-C (Conveyor) |
LM 20F-M (Motorized X/Y Moving Platform) |
|
Model |
AMV-A (Conveyor) |
AMV-A (Motorized X/Y Moving Platform) |
|
Laser Power (W) |
Fiber Laser: 20 / 30 / 50 / 100 |
Fiber Laser: 20 / 30 / 50 / 100 |
|
Marking Size (mm) |
500 × 2500 mm |
400 × 400 mm |
|
Machine Dimensions (mm) |
2500 × 1100 × 1500 mm |
1200 × 1100 × 1500 mm |
|
Repeat Positioning Accuracy (mm) |
±0.01 mm |
±0.01 mm |
|
Minimum Line Width (mm) |
0.04 mm |
0.04 mm |
|
Marking Speed (mm/s) |
< 7000 mm/s |
< 7000 mm/s |
|
Machine Power Consumption (kW) |
≤ 3 kW |
≤ 3.5 kW |
|
Operating Environment |
Temperature: 10–30°C |
Temperature: 10–30°C |
|
Minimum Character Height (mm) |
0.2 mm |
0.2 mm |
|
Machine Weight (kg) |
350 kg |
300 kg |
