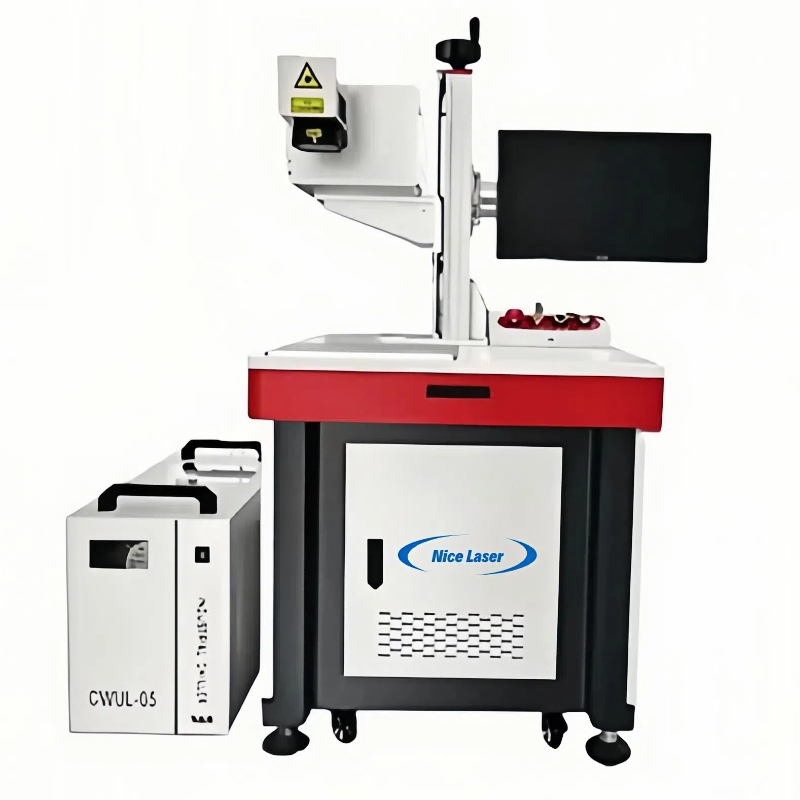

UV Laser Marker LM 5U

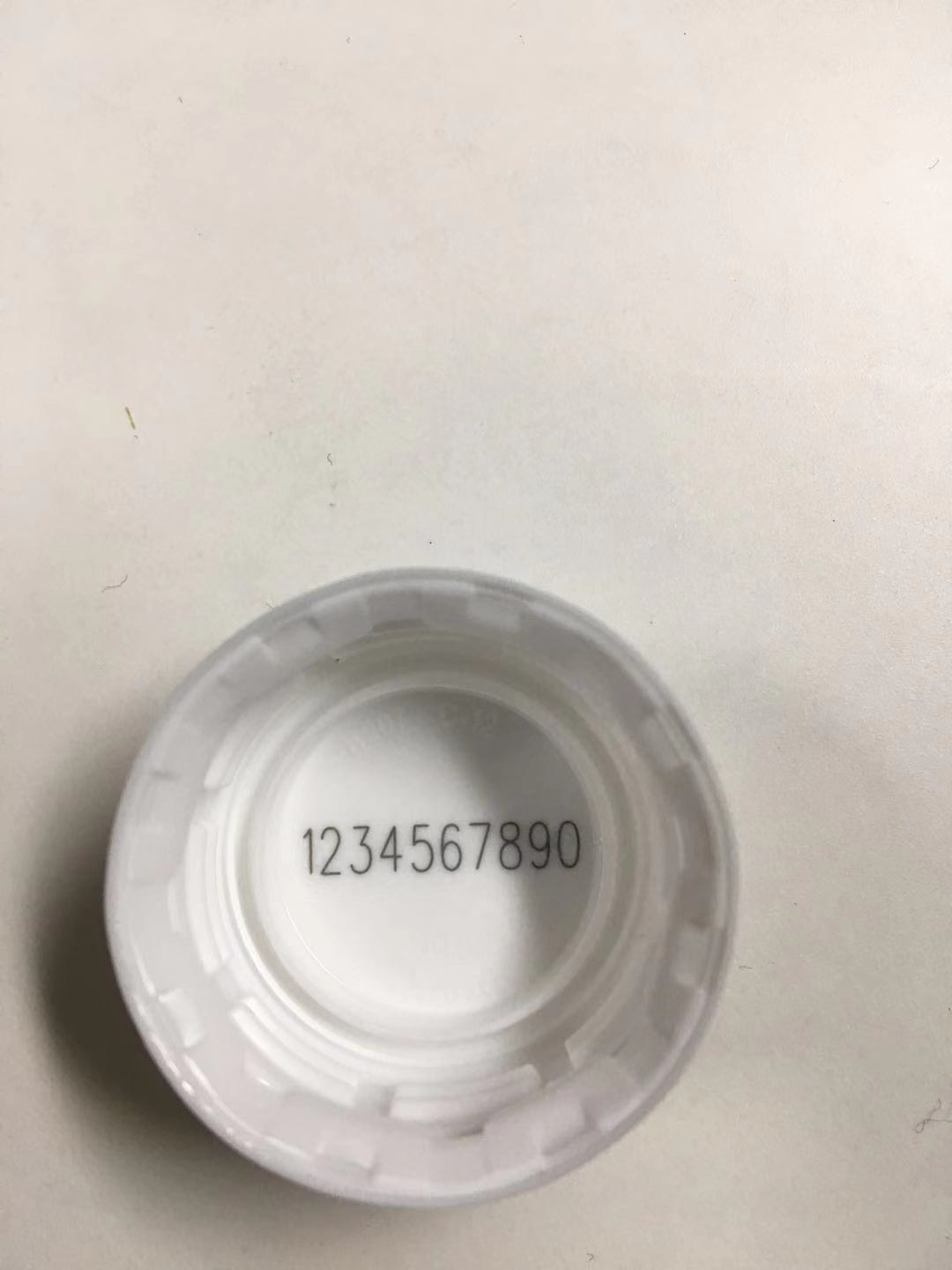

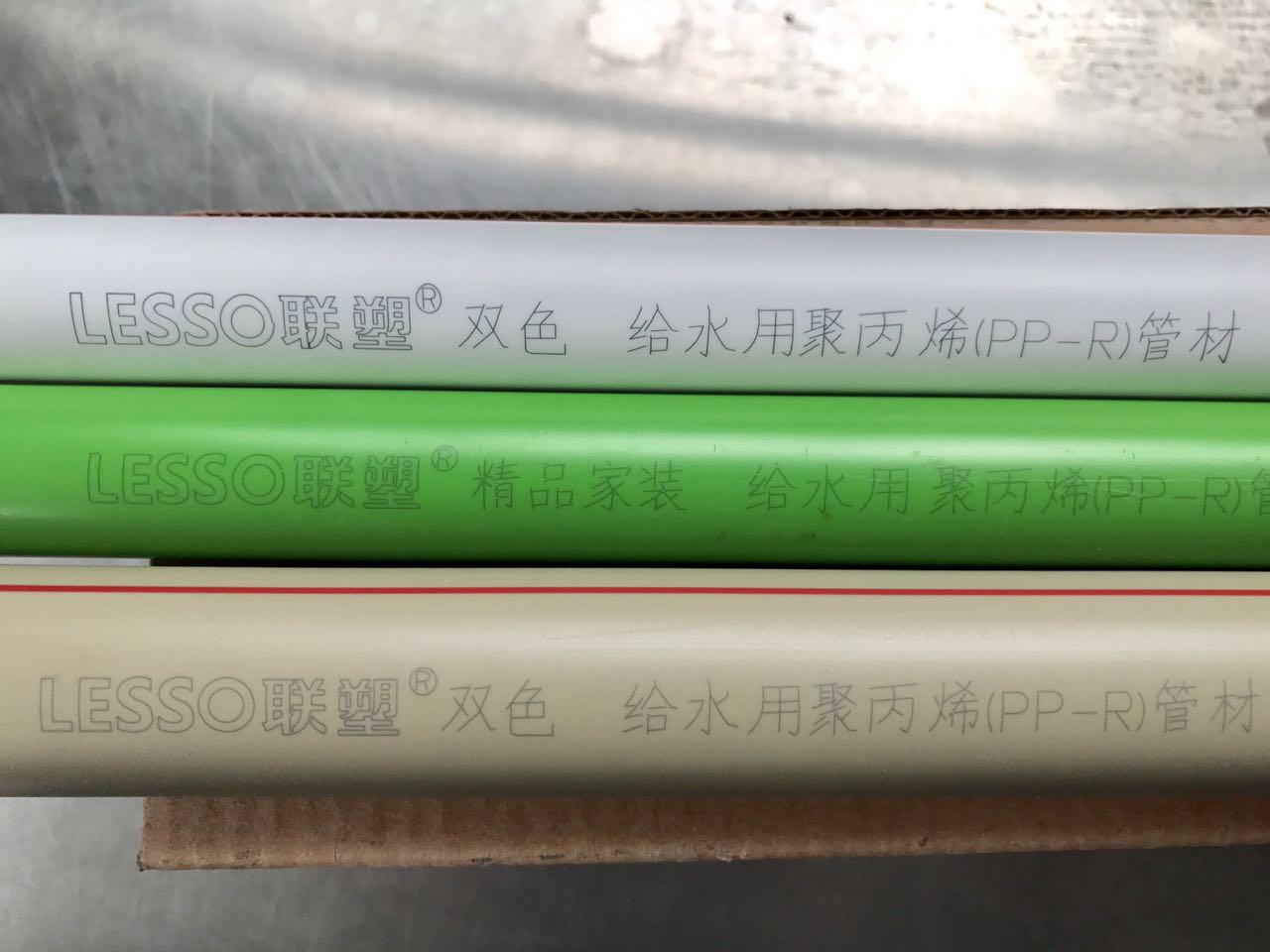

This machine adopts third-order intracavity frequency doubling technology. The 355nm UV laser focusing spot is very small, greatly reducing the mechanical deformation of the material. It belongs to cold light, so it is mainly used for ultra-fine marking and engraving, especially suitable for marking food, pharmaceutical packaging materials,
Products DETAILS
UV Laser Marker LM 5U
Model |
LM 5U |
Wavelength |
355nm |
Laser power |
5W |
Cooling method |
Water |
Focus distance |
170mm |
Min line width |
0.01mm |
Min character |
0.1mm |
Scanning speed |
0-7000mm/s |
Graphic format supported |
DXF/PLT |
Voltage |
110/220V |
Frequency |
50/60Hz |
Working environment |
Temperature: 10-30 degrees, humidity: 5%-75%, no water or dust |
